Recipes Table
The Recipes Table contains every single crafting recipe in the game. In this table, you can set up what machines to be used in a recipe, the crafting costs of the recipe and so forth.
Row Name
The row for each entry in the RecipesTable is a unique ID. This ID is used for most methods of identifying the recipe and is called a "Template ID" in functions used in the event-graph. This ID is used whenever a recipe is accessed through the crafting system.
Note: You will find that many recipe ID's have the same ID as their corresponding resulting item. The lists are, however, completely separate and this is not a requirement in any way.
Recipes/

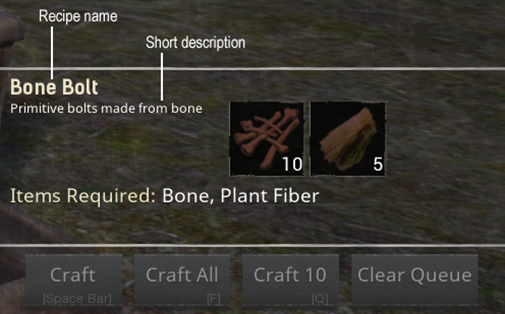

Recipe Name - The display name of the recipe
Short Desc - The description shown in the crafting window.
Recipe Type - Primarily a sorting method used internally
Time to Craft - The time it takes, measured in seconds, to craft the item
Tier - Not in use
Craft XP - The amount of XP given to the player when the item is crafted
Crafting Stations - This links to the Crafting Station ID for the machine. This ID needs to match the Crafting Group set up in the crafting station blueprint. For building pieces in the construction hammer UI, this should be set to “0”
Construction Sub Class - For items present in the Construction Hammer, this represents the category under which the item should be sorted. This entry needs to exist in the “ DT_ConstructionSubClass ” table.
Required Fuel - If the recipe requires a specific fuel to be crafted, this is the Item Template ID for that specific fuel item.
Icon - The icon displayed in the recipe window for the recipe
Icon Layers - For icons that use layered icons such as epic borders. Use this OR “Icon”, not both
Building Module - If your recipe is an upgradeable building piece or placeable, the blueprint should be linked here. This is not a requirement, but if the crafted result here matches with the blueprint set on a stations "Upgrade Target", the crafting station will be replaced with the crafted resulting station/placeable.
Destroy Station on Complete - If this is checked, it destroys the station when completed. This is only really used for special recipes such as the summoning of an Avatar.
Recipe Item Flags : Only used internally
Ingredient 1 ID - The Template ID for the first item required to craft the recipe.
Ingredient 1 Quantity - The amount of item 1's required to craft the recipe.
Ingredient 2 ID - The Template ID for the second item required to craft the recipe.
Ingredient 2 Quantity - The amount of item 2's required to craft the recipe.
Ingredient 3 ID - The Template ID for the third item required to craft the recipe.
Ingredient 3 Quantity - The amount of item 3's required to craft the recipe.
Ingredient 4 ID - The Template ID for the fourth item required to craft the recipe.
Ingredient 4 Quantity - The amount of item 4's required to craft the recipe.
Catalyst ID - This template ID is used for items that are part of recipes but not consumed when the recipe is actually crafted
Result 1 ID - This is the Item Template ID of the item crafted.
Result 1 Quantity - This is the amount of Items crafted when the recipe is finished.
Result 1 Weight - If left at 0, this result is always crafted - if it has any other value, it works as a weighted system (please refer to the guide "Primer - What are Weighted tables" for more information)
Result 2 ID - Some recipes may have byproducts, or craft more than one distinct item. This entry allows a second Item Template ID to be crafted
Result 2 Quantity - This is the amount of secondary items crafted when the recipe is finished.
Result 2 Weight - If left at 0, this result is always crafted - if it has any other value, it works as a weighted system (please refer to the guide "Primer - What are Weighted tables" for more information)
Result 3 ID - Some recipes may have byproducts, or craft more than one distinct item. This entry allows a third Item Template ID to be crafted
Result 3 Quantity - This is the amount of secondary items crafted when the recipe is finished.
Result 3 Weight - If left at 0, this result is always crafted - if it has any other value, it works as a weighted system (please refer to the guide "Primer - What are Weighted tables" for more information)
Result 4 ID - Some recipes may have byproducts, or craft more than one distinct item. This entry allows a fourth Item Template ID to be crafted
Result 4 Quantity - This is the amount of fourth items crafted when the recipe is finished.
Result 4 Weight - If left at 0, this result is always crafted - if it has any other value, it works as a weighted system (please refer to the guide "Primer - What are Weighted tables" for more information)
Thrall Recipe Feat Requirement - If the recipe is given from the ProfessionTable (thralls), this allows you to set up if crafting the recipe also requires recipes to be known by the player. As an example - crafting a Flawless Star Metal Sword requires the player to know the Star Metal Sword recipe.
Note: It's important to know that despite the name of this entry being "Thrall Recipe FEAT requirement", it is actually the Recipe that is taken into consideration here.
Is Thrall Machine Recipe - Not in use
Is Recipe Enabled - If you want to disable a recipe for some reason, this needs to be unchecked.
Is Crafting Time Unafffected by Server Settings - if this is ticked, the recipe will not be affected by server settings.
Map Marker Icon - When the recipe is being crafted, this icon is displayed on the map. Currently not used but the intention was to show where avatars were created.
Exiles Journey Trigger - When completed, certain recipes grants completion of Journey steps. This is where those are set up.
